TS940 AVR Board
While tuning up the unit for use and getting the microphone squared away, Bob and I smelled hot electrons. I pulled the top cover and with a Ray-Tek gun discovered a filter capacitor on the AVR board that was starting to short. This doesn't surprise me on a 20 year old rig. I pulled the AVR and DC-DC boards to re-cap them.

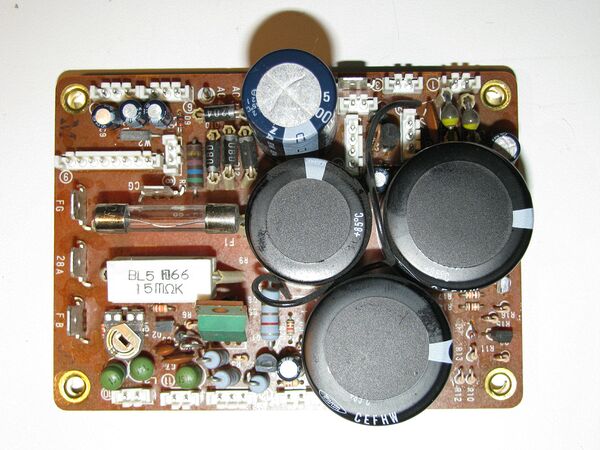

Before...

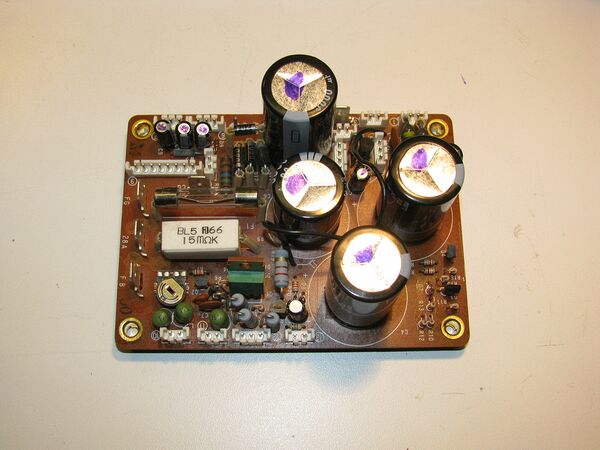

Here's the AVR board after the re-cap. Purple sharpie allowed me to keep track of what was and wasn't done during the replacement.
Diagram courtesy of the Kenwood Repair Manual...
Digi-key Parts List
| Part Nuimber | Description | Componet Number | Quan |
| 565-1116-ND | CAP 2200UF 50V ELECT SMG RAD | C6 | 1 |
| 565-1136-ND | CAP 2200UF 63V ELECT SMG RAD | C3, C4 | 2 |
| 565-1069-ND | CAP 6800UF 25V ELECT SMG RAD | C12 | 1 |
| 565-1036-ND | CAP 47UF 16V ELECT SMG RAD | C9, C10, C11 | 3 |
| 565-1078-ND | CAP 10UF 35V ELECT SMG RAD | C8 | 1 |
| 565-1110-ND | CAP 100UF 50V ELECT SMG RAD | C14 | 1 |
| 565-1056-ND | CAP 22UF 25V ELECT SMG RAD | C13 | 1 |
| 565-1094-ND | CAP 5600UF 35V ELECT SMG RAD | C12 | 1 |
| P6946-ND | CAPACITOR 22000UF 50V ELECT TSUP | C108, C109 (Under AVR bracket) | 2 |
Use this list at your own risk, while it worked for me, it may not for you!
